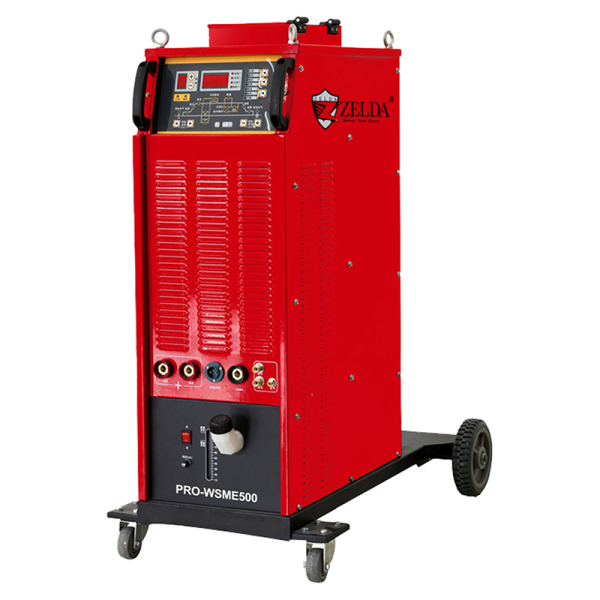

TIG PRO WSME 500 ZELDA

TIG WELDER PRO WSME 500 ZELDA
Description

The TIG WELDER PRO WSME 500 offers advanced welding functions such as AC TIG, AC Pulsed TIG, DC TIG, DC Pulsed TIG, and DC MMA. Thanks to the Soft-Switch technology and the control microprocessor, it allows storing up to 10 welding parameter sets. The AC frequency is adjustable and supports various welding materials, such as aluminum, carbon steel, stainless steel, copper, and titanium. It is ideal for applications in the machinery, oil, chemical, shipbuilding, construction, decoration, and power industries.

Welding Functions

• AC TIG
• AC Pulsed TIG
• DC TIG
• DC Pulsed TIG
• DC MMA

Advantages:

• Soft-Switch technology for increased efficiency.
• Ability to store 10 groups of welding parameters.
• Adjustable AC frequency.
• Supported materials: aluminum, carbon steel, stainless steel, copper, titanium.

Technical Specifications

• Input power: 3-phase, 220V/380V/415V/440V, 50/60Hz
• Input capacity: 26 kVA
• Input current: 31 A
• Output current: 15-500 A
• Output voltage: 10.8-30 V
• Open circuit voltage: 69 V
• MMA current range:
  • Push: 20-400 A
  • Arc: 1-200 A
• Adjustment range:
  • Pulse current: 20-160 A
  • Base value: 10-500 A
  • Peak: 10-500 A
• Pulse percentage: 1-99%
• Pulse frequency: 0.1-20 Hz
• Clean-up percentage range: -40~+40%
• AC polarity range: -50~+30%
• AC frequency range: 20-200 Hz
• Times:
  • Pre-time: 0.1-5 s
  • Delay: 1-10 s
  • Ramp: 0.1-10 s
  • Damping: 0.1-10 s
• Duty cycle: 100%
• Protection rating: IP21S

Includes

• Electrode holder
• TIG torch
• Ground clamp
